WAGO connection kit compatible with 3x cable for 5-hole ceiling rose

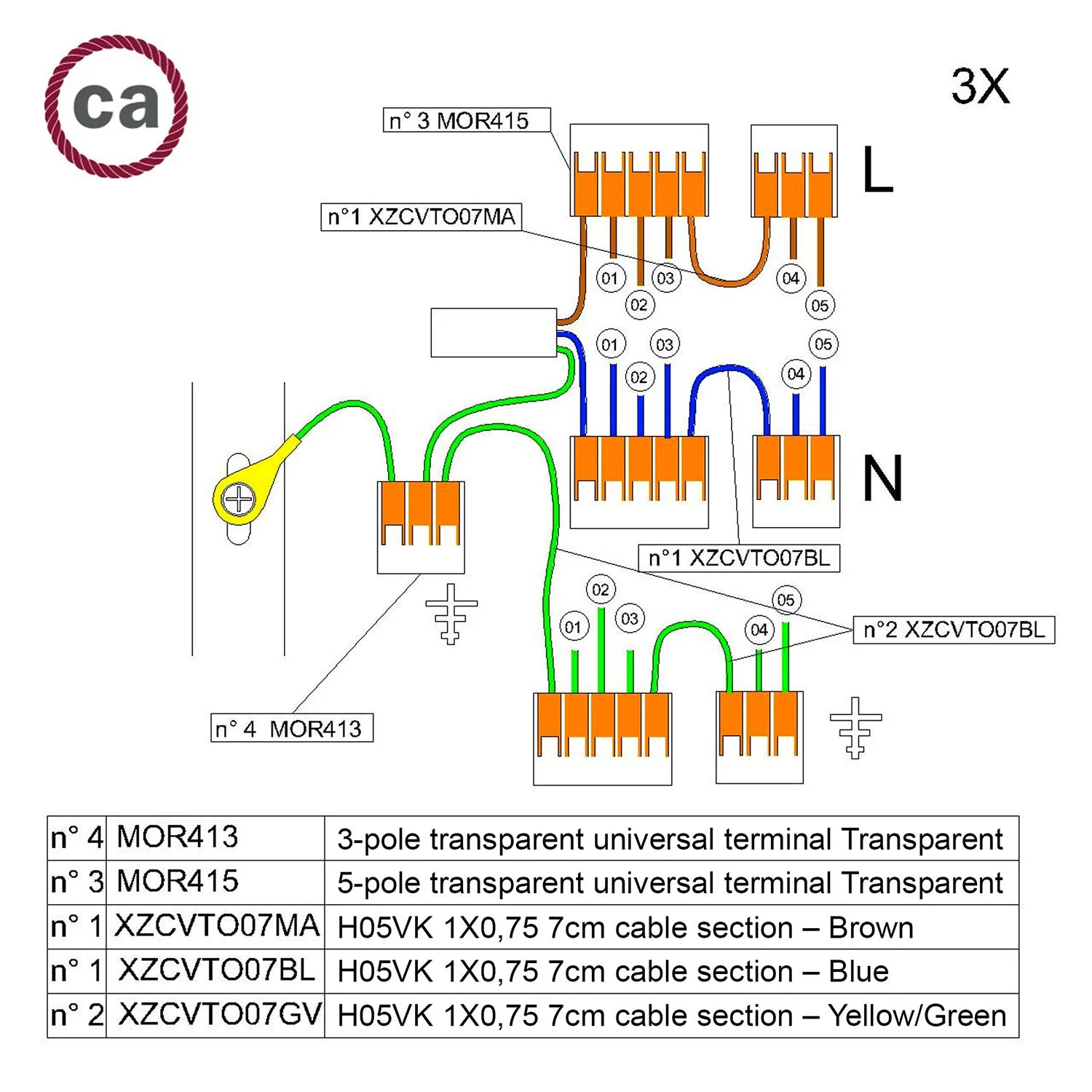

Accessory kit for ceiling rose wiring with 5 holes. The kit includes:
- 3 universal 5-way transparent connectors
- 4 universal 3-way transparent connectors
- 4 single-core cable segments for use as interconnection bridges
The transparent container allows you to clearly see whether the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electric cables with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal cross-section: 3 x 0.2 - 4 mm² for rigid or flexible cables
3 connectors - Number of entries: 5
4 connectors - Number of entries: 3
Rated voltage: 450 V
Rated current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature according to EN 60998: 85° C
1 piece of single-core brown cable: 7 cm
1 piece of single-core blue cable: 7 cm
2 pieces of single-core green cable: 7 cm
More Images
WAGO connection kit compatible with 3x cable for 5-hole ceiling rose
Accessory kit for ceiling rose wiring with 5 holes. The kit includes:
- 3 universal 5-way transparent connectors
- 4 universal 3-way transparent connectors
- 4 single-core cable segments for use as interconnection bridges
The transparent container allows you to clearly see whether the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electric cables with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal cross-section: 3 x 0.2 - 4 mm² for rigid or flexible cables
3 connectors - Number of entries: 5
4 connectors - Number of entries: 3
Rated voltage: 450 V
Rated current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature according to EN 60998: 85° C
1 piece of single-core brown cable: 7 cm
1 piece of single-core blue cable: 7 cm
2 pieces of single-core green cable: 7 cm
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Accessory kit for ceiling rose wiring with 5 holes. The kit includes:
- 3 universal 5-way transparent connectors
- 4 universal 3-way transparent connectors
- 4 single-core cable segments for use as interconnection bridges
The transparent container allows you to clearly see whether the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electric cables with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal cross-section: 3 x 0.2 - 4 mm² for rigid or flexible cables
3 connectors - Number of entries: 5
4 connectors - Number of entries: 3
Rated voltage: 450 V
Rated current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature according to EN 60998: 85° C
1 piece of single-core brown cable: 7 cm
1 piece of single-core blue cable: 7 cm
2 pieces of single-core green cable: 7 cm
