WAGO connection kit compatible with 3x cable for 4-hole ceiling rose

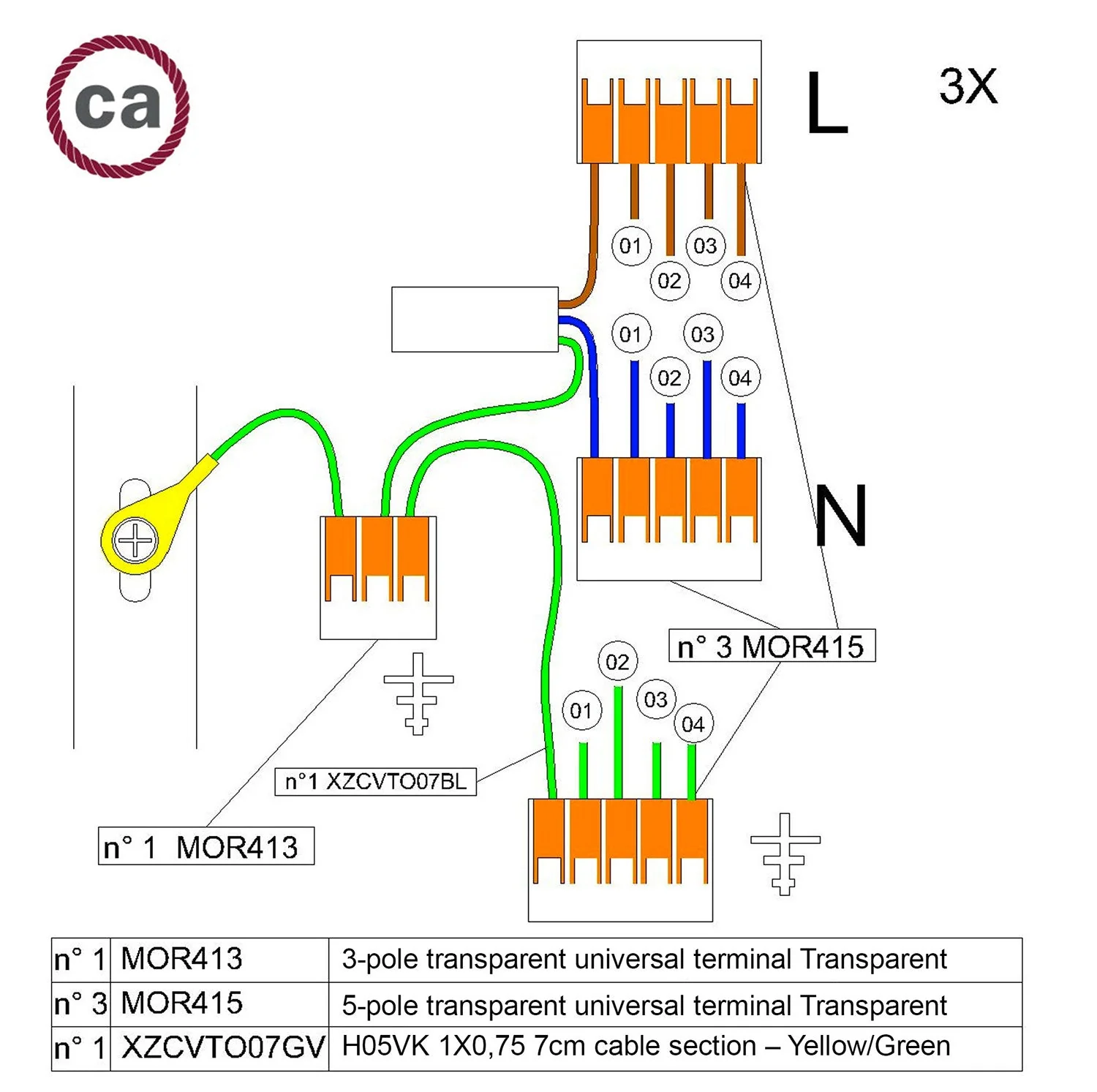

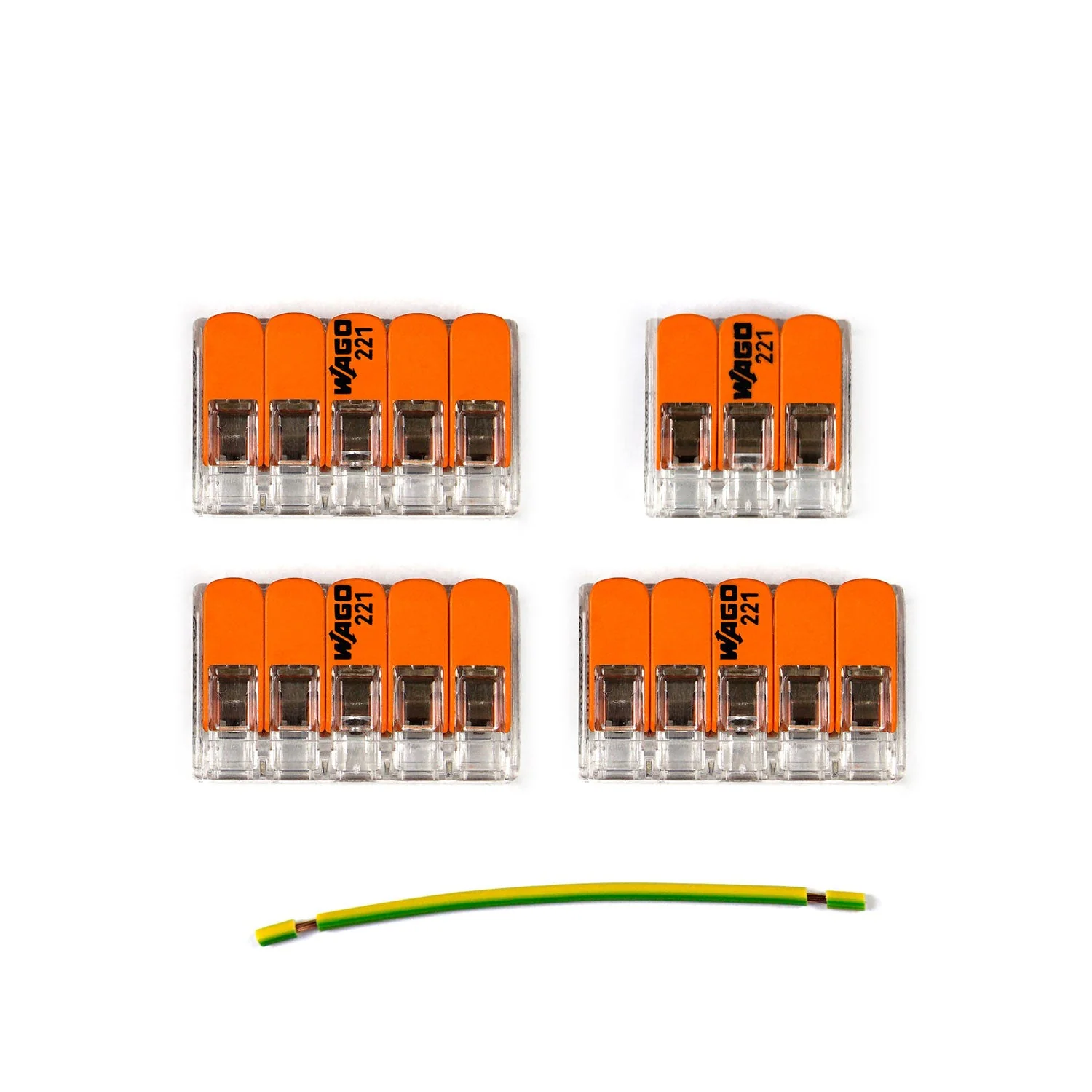

Accessory kit for wiring 4-hole ceiling rose. The kit includes:
- 3 universal 5-entry transparent terminal blocks
- 1 universal 3-entry transparent terminal block
- 1 piece of cable for use as an interconnection bridge
The transparent container allows you to clearly see whether the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electric cables with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 3 x 0.2 - 4 mm² for rigid or flexible cables
3 connectors - Number of inputs: 5
1 connector - Number of inputs: 3
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature according to EN 60998: 85° C
1 piece of single-core green cable: 7 cm
