WAGO connection kit compatible with 3x cable for two-hole ceiling rose

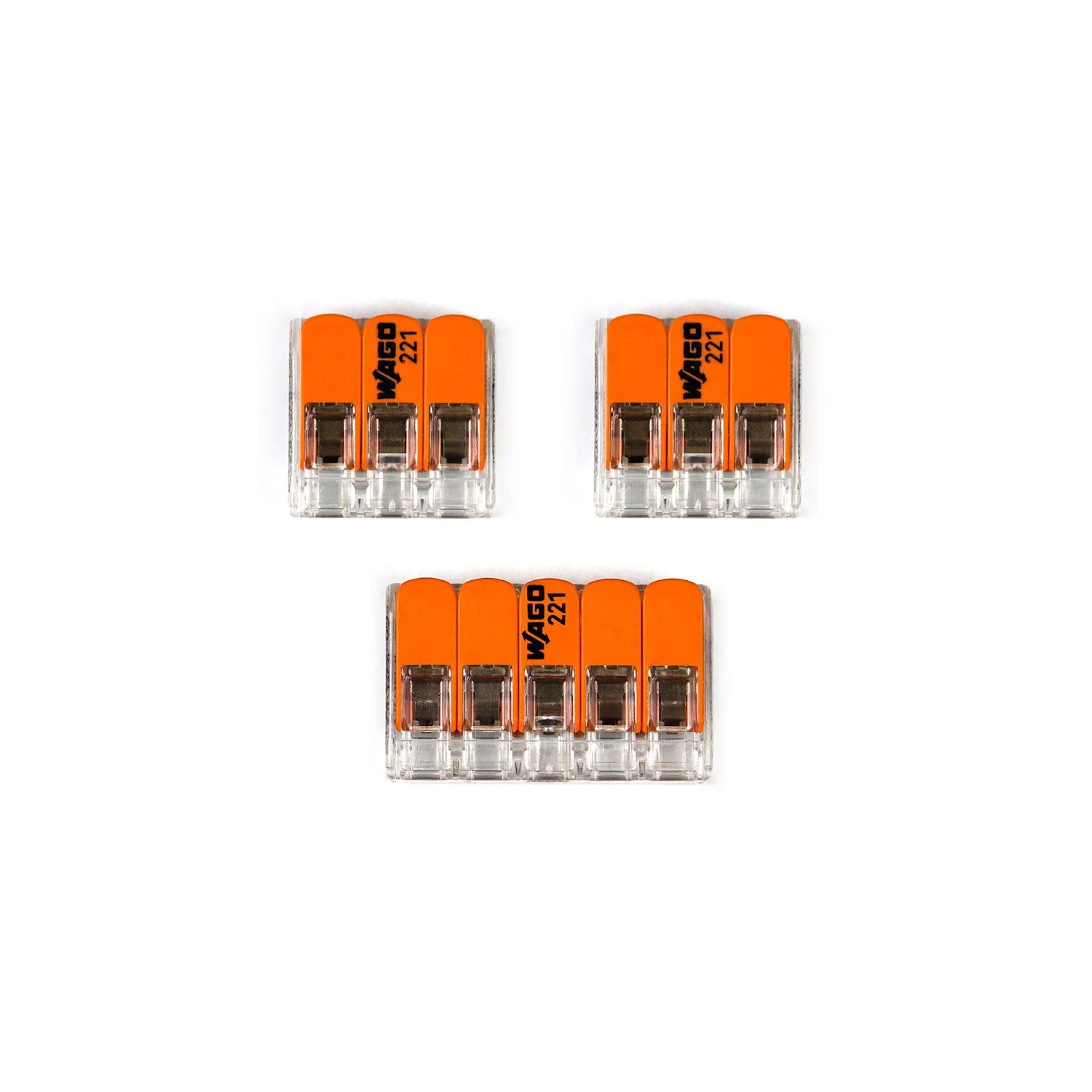

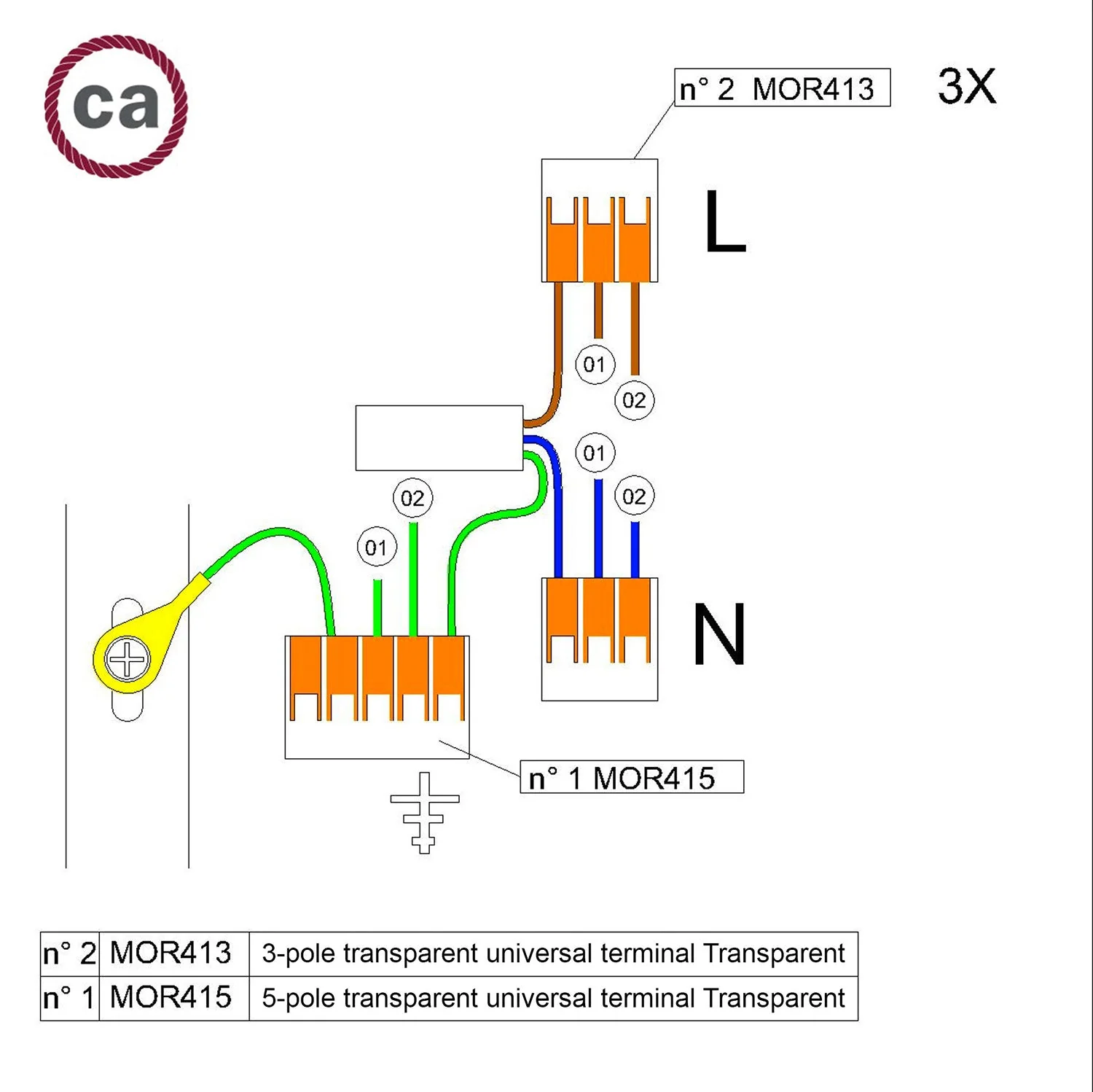

Wiring accessories kit for 2-hole ceiling rose. The kit includes two universal transparent 3-way connectors and one universal transparent 5-way connector.
The transparent container allows you to clearly see whether the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electric cables with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal cross-section: 3 x 0.2 - 4 mm² for solid or flexible cables
2 connectors - Number of entries: 3
1 connector - Number of entries: 5
Rated voltage: 450 V
Rated current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature allowed according to EN 60998: 85° C
More Images
WAGO connection kit compatible with 3x cable for two-hole ceiling rose
Wiring accessories kit for 2-hole ceiling rose. The kit includes two universal transparent 3-way connectors and one universal transparent 5-way connector.
The transparent container allows you to clearly see whether the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electric cables with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal cross-section: 3 x 0.2 - 4 mm² for solid or flexible cables
2 connectors - Number of entries: 3
1 connector - Number of entries: 5
Rated voltage: 450 V
Rated current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature allowed according to EN 60998: 85° C
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Wiring accessories kit for 2-hole ceiling rose. The kit includes two universal transparent 3-way connectors and one universal transparent 5-way connector.
The transparent container allows you to clearly see whether the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electric cables with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal cross-section: 3 x 0.2 - 4 mm² for solid or flexible cables
2 connectors - Number of entries: 3
1 connector - Number of entries: 5
Rated voltage: 450 V
Rated current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature allowed according to EN 60998: 85° C
