WAGO connection kit compatible with 3x cable for 12-hole ceiling rose

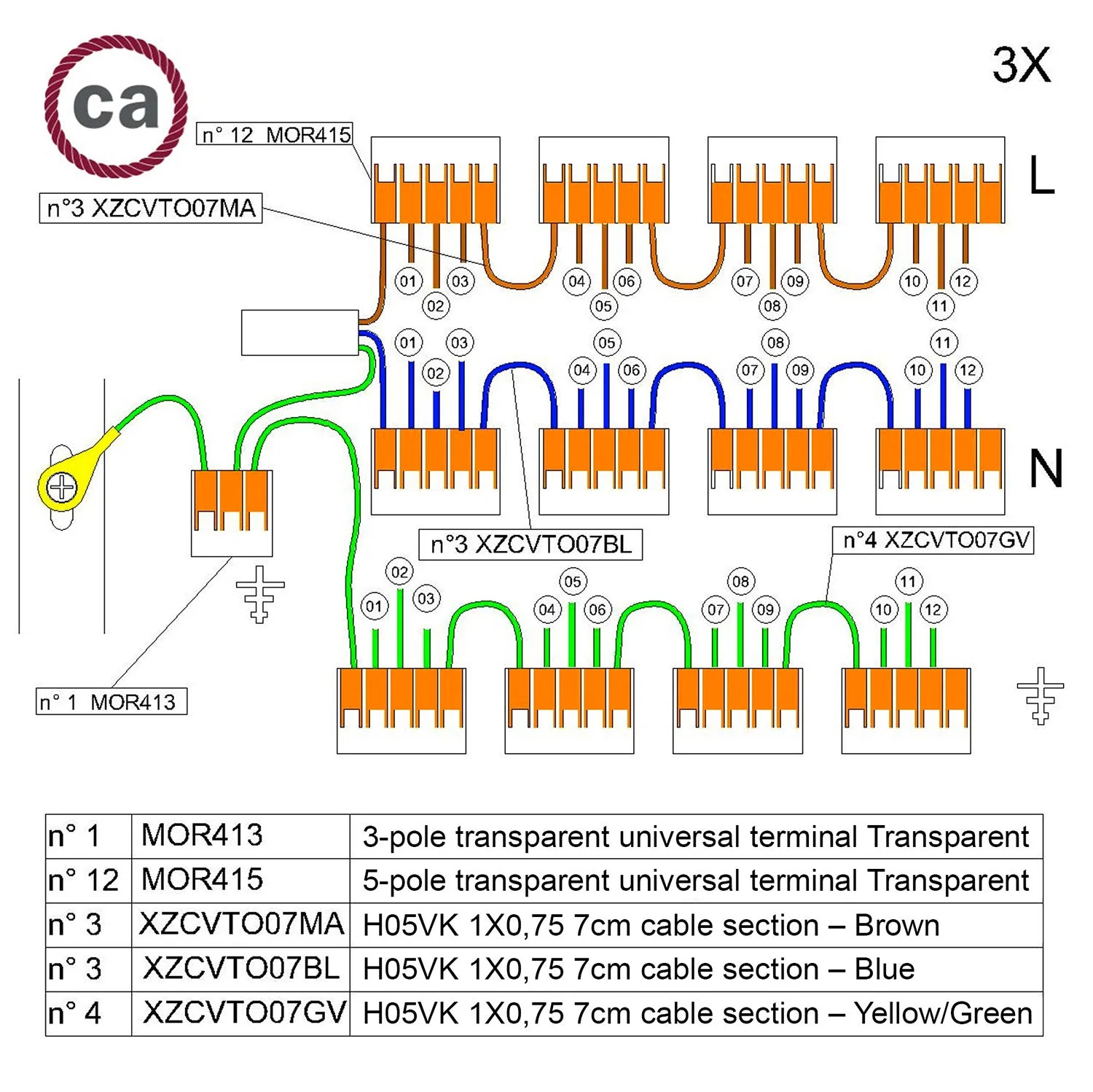

Accessory kit for ceiling rose wiring with 12 holes. The kit includes:
- 12 universal transparent 5-way connectors
- 1 universal transparent 3-way connector
- 10 single-core cable sections useful as interconnection bridges
The transparent container allows you to clearly see whether the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electric cables with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 3 x 0.2 - 4 mm² for rigid or flexible cables
12 connectors - Number of inputs: 5
1 connector - Number of inputs: 3
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum permissible ambient temperature according to EN 60998: 85° C
3 pieces of single-core brown cable: 7 cm
3 pieces of single-core blue cable: 7 cm
4 pieces of single-core green cable: 7 cm
