WAGO connection kit compatible with 2x cable for 14-hole ceiling rose

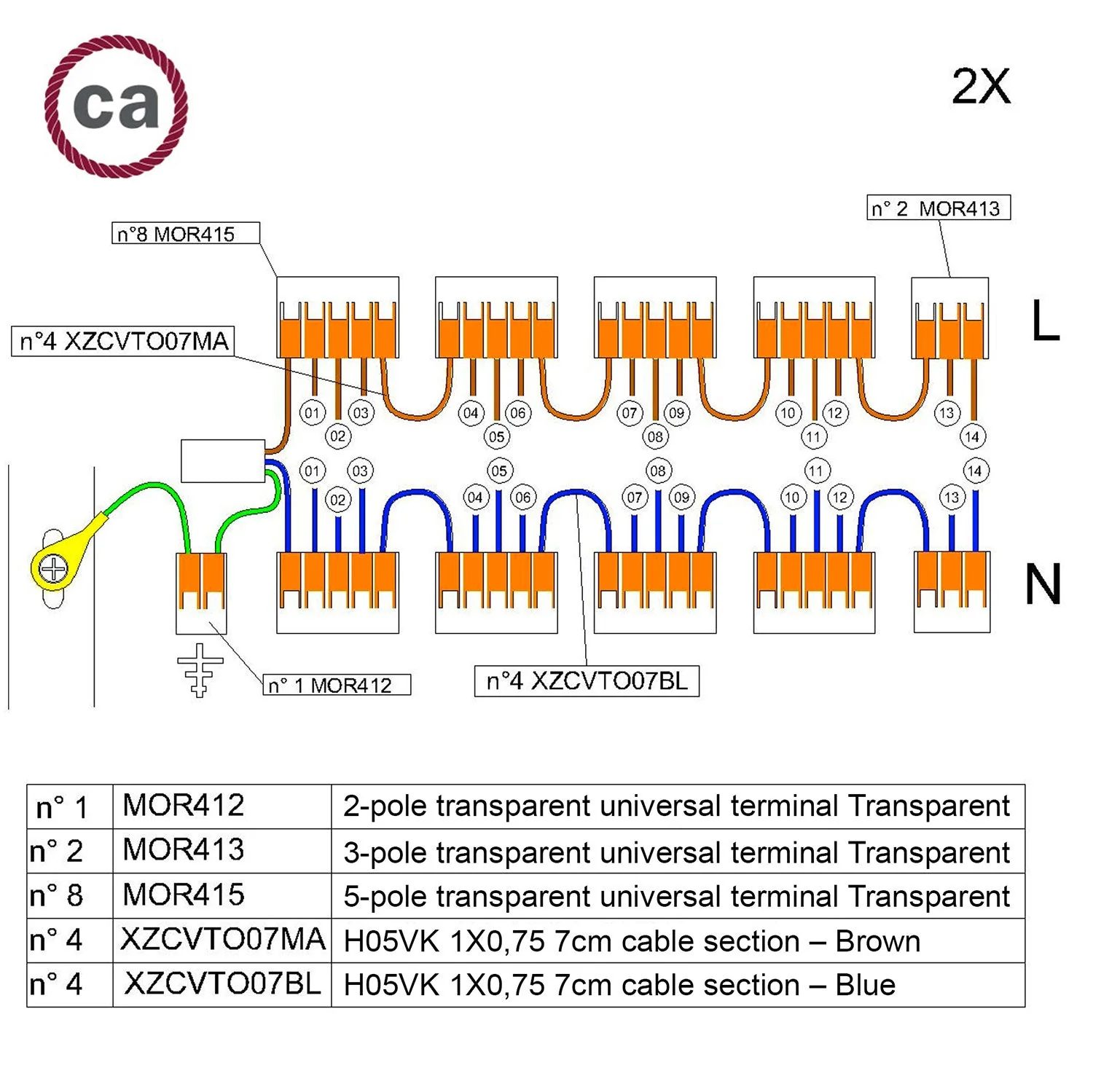

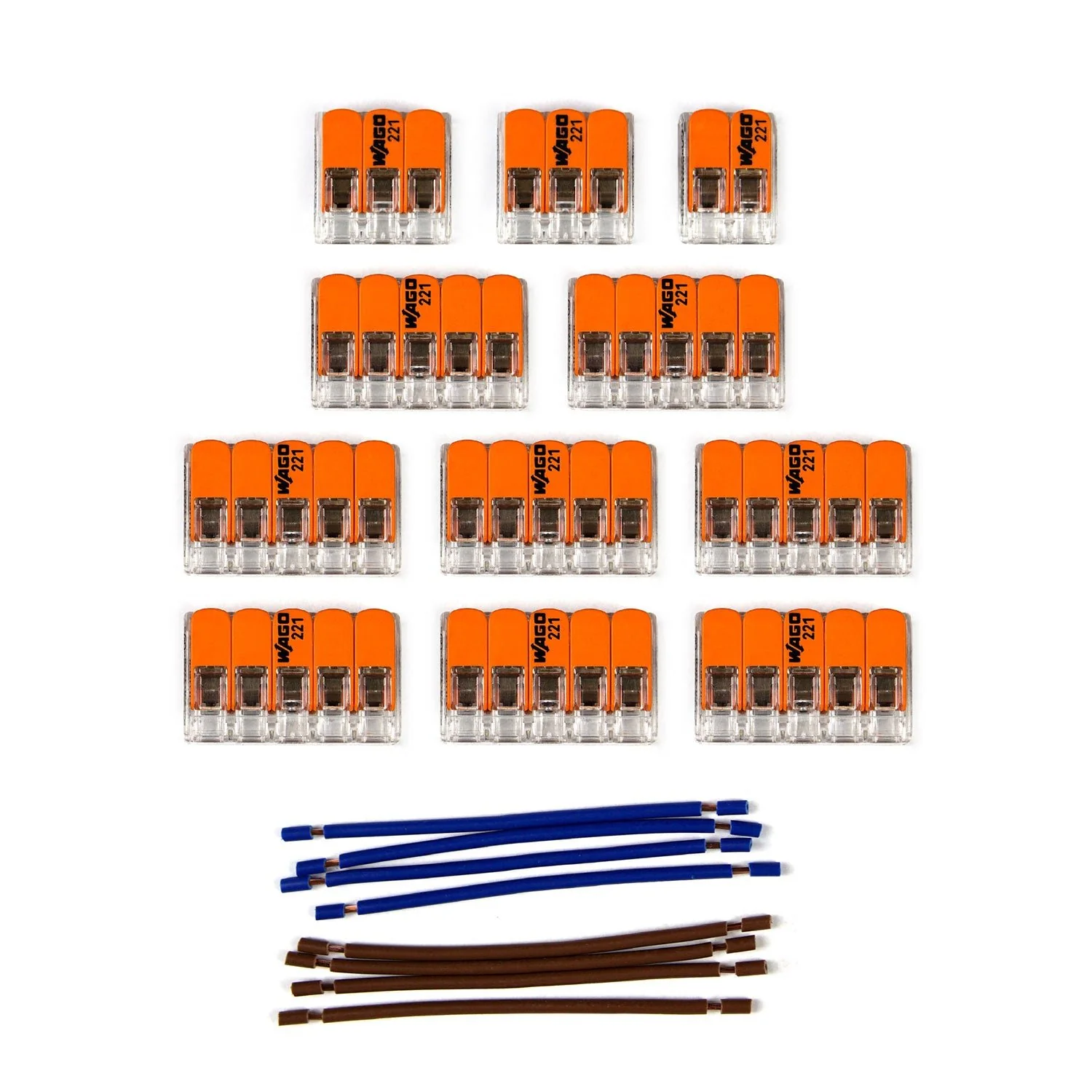

Accessory kit for wiring 14-hole ceiling rose. The kit includes:
- 8 universal 5-entry transparent connectors
- 2 universal 3-entry transparent connectors
- 1 universal 2-entry transparent connector
- 8 pieces of single-core cable useful as interconnection bridges
The transparent container allows you to clearly see whether the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electric cables with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for rigid or flexible cables
8 connectors - Number of entries: 5
2 connectors - Number of entries: 3
1 connector - Number of entries: 2
Nominal voltage: 450 V
Nominal current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature according to EN 60998: 85° C
4 pieces of single-core brown cable: 7 cm
4 pieces of single-core blue cable: 7 cm
