WAGO connection kit compatible with 2x cable for 15-hole ceiling rose

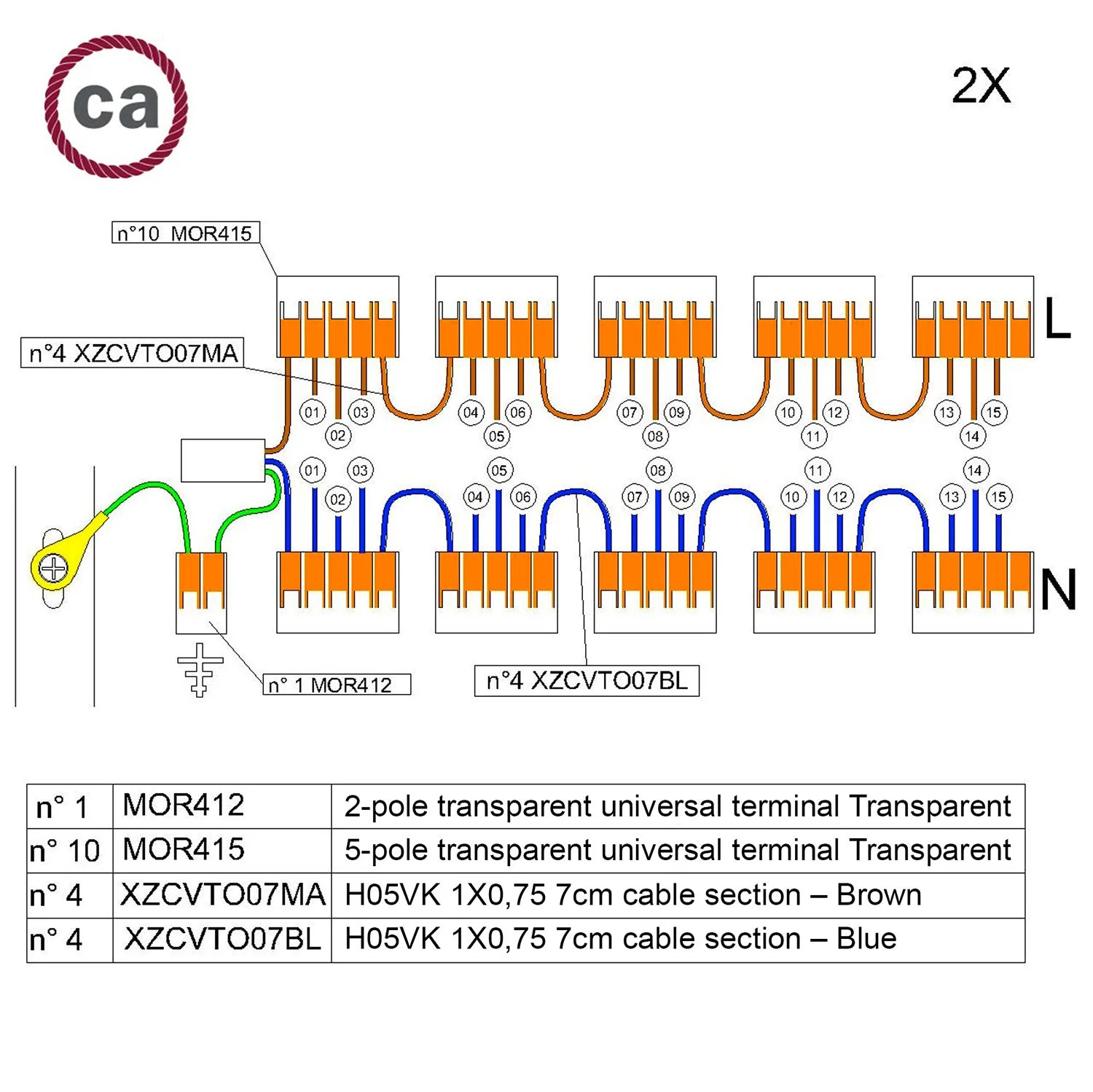

Accessory kit for wiring ceiling rose with 15 holes. The kit includes: - 10 universal transparent connectors with 5 inputs - 1 universal transparent connector with 2 inputs - 8 single-core cable segments useful as interconnection bridges
The transparent container allows you to clearly see whether the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electric cables with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal cross-section: 2 x 0.2 - 4 mm² for solid or flexible cables
10 connectors - Number of entries: 5
1 connector - Number of entries: 2
Rated voltage: 450 V
Rated current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature according to EN 60998: 85° C
4 brown single-core cable sections: 7 cm
4 blue single-core cable sections: 7 cm
More Images
WAGO connection kit compatible with 2x cable for 15-hole ceiling rose
Accessory kit for wiring ceiling rose with 15 holes. The kit includes: - 10 universal transparent connectors with 5 inputs - 1 universal transparent connector with 2 inputs - 8 single-core cable segments useful as interconnection bridges
The transparent container allows you to clearly see whether the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electric cables with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal cross-section: 2 x 0.2 - 4 mm² for solid or flexible cables
10 connectors - Number of entries: 5
1 connector - Number of entries: 2
Rated voltage: 450 V
Rated current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature according to EN 60998: 85° C
4 brown single-core cable sections: 7 cm
4 blue single-core cable sections: 7 cm
