EIVA-3 3-way IP65 connector for outdoor use - Modulair System - White
EIVA-3 White is the "T" connection with IP65 protection rating from the Modulair outdoor range: the world’s first IP65 outdoor lighting system that can be wired, allowing you to create custom waterproof installations. Thanks to the special insulating gel inside, it is completely safe against rain and storms, adding brightness and versatility to your spaces.
Easy and quick to assemble, EIVA-3 White allows you to design bespoke outdoor configurations by making use of existing connections. Assembly is by slotting the parts together, with no need for tools: you can create pendant lamps with an exposed light bulb or lampshade, or even intersecting festoon lights to create an elegant lattice of light.
With EIVA-3 White you decide the number, spacing and length of the light drops, bringing light exactly where it is needed. Thanks to the top ring, the joint can be easily fixed in any outdoor space. And with the matching side closure cap, you can also use it as an end piece, keeping the look neat and consistent.
EIVA-3 White is a product conceived, designed and made by EIVA in Italy.
Technical specifications:
EIVA-3, 3-way outdoor connection:
Connection device for lighting fixtures CE 60598-1
Material: thermoplastic, pre-filled with insulating gel

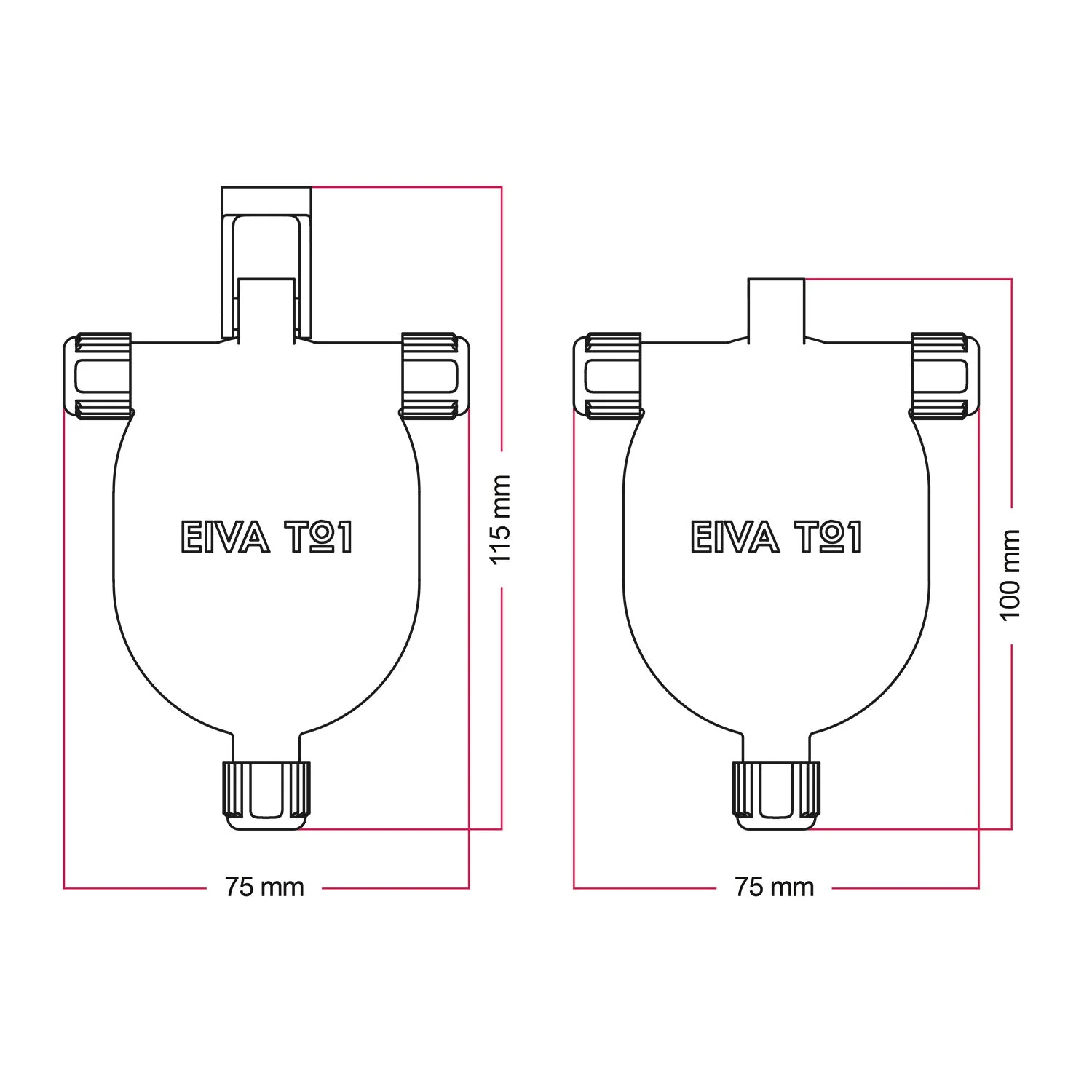

Height: 115mm
Width: 75mm
Thickness: 26mm
Rated voltage: 110/250 V ac
Compatible with H05RN-F 2x1mm2 cables
Class: II
Degree of protection: IP65
Includes cable clamp, a silicone cap for side holes, and a hook for ceiling mounting.
The maximum load supported by the wired cables is 1.5 kg.
