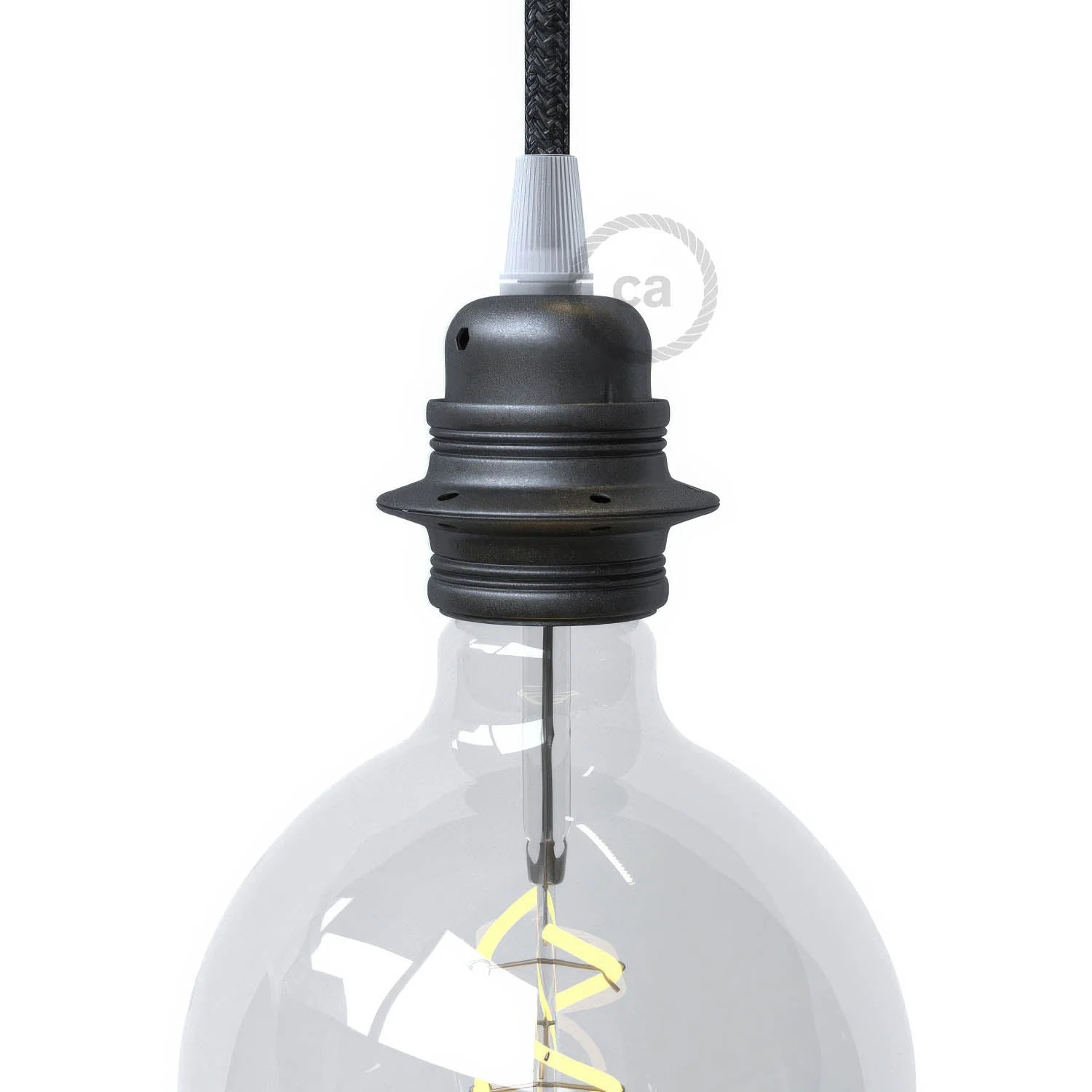

E27 metal lamp holder kit with double ring for lampshade - Gunmetal
The E27 metal lamp holder kit with double ring is used to assemble a wall, table or ceiling lamp fitted with a lampshade.
The gunmetal finish adds a technical and sophisticated touch: dark, elegant and bold, it enhances the set-up with a contemporary and tactile presence.
The range of finishes spans from polished metals — silver, brass, copper — to selected colour options; among these, Lemon can introduce a more personal light point without excess.
A tip for you:

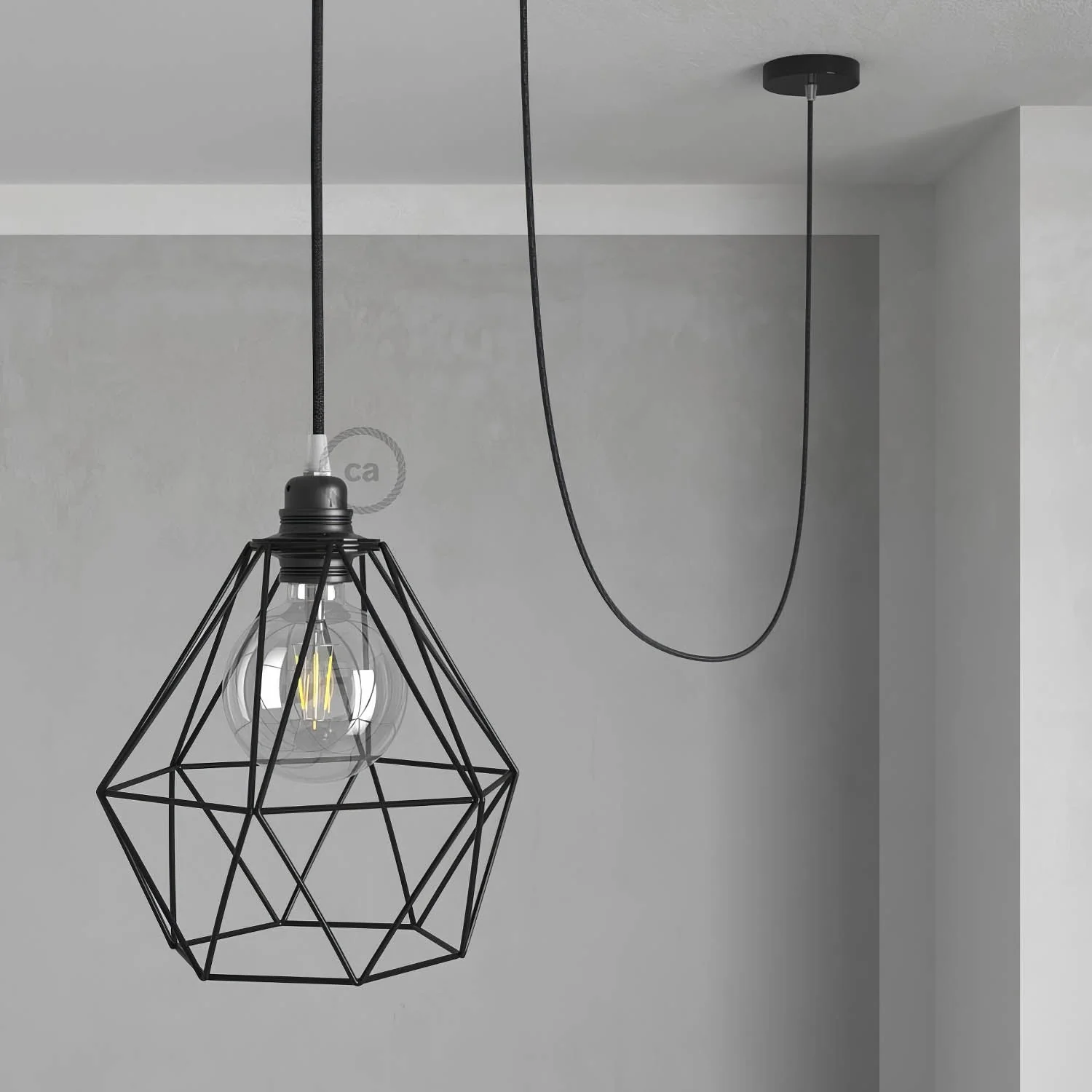

- pair it with a flat lampshade like Ellepi or a cage lampshade like Diamond, which leave the E27 lamp holder partially visible!
The lamp holder kit requires 3x0.75 cables.
Technical specifications:

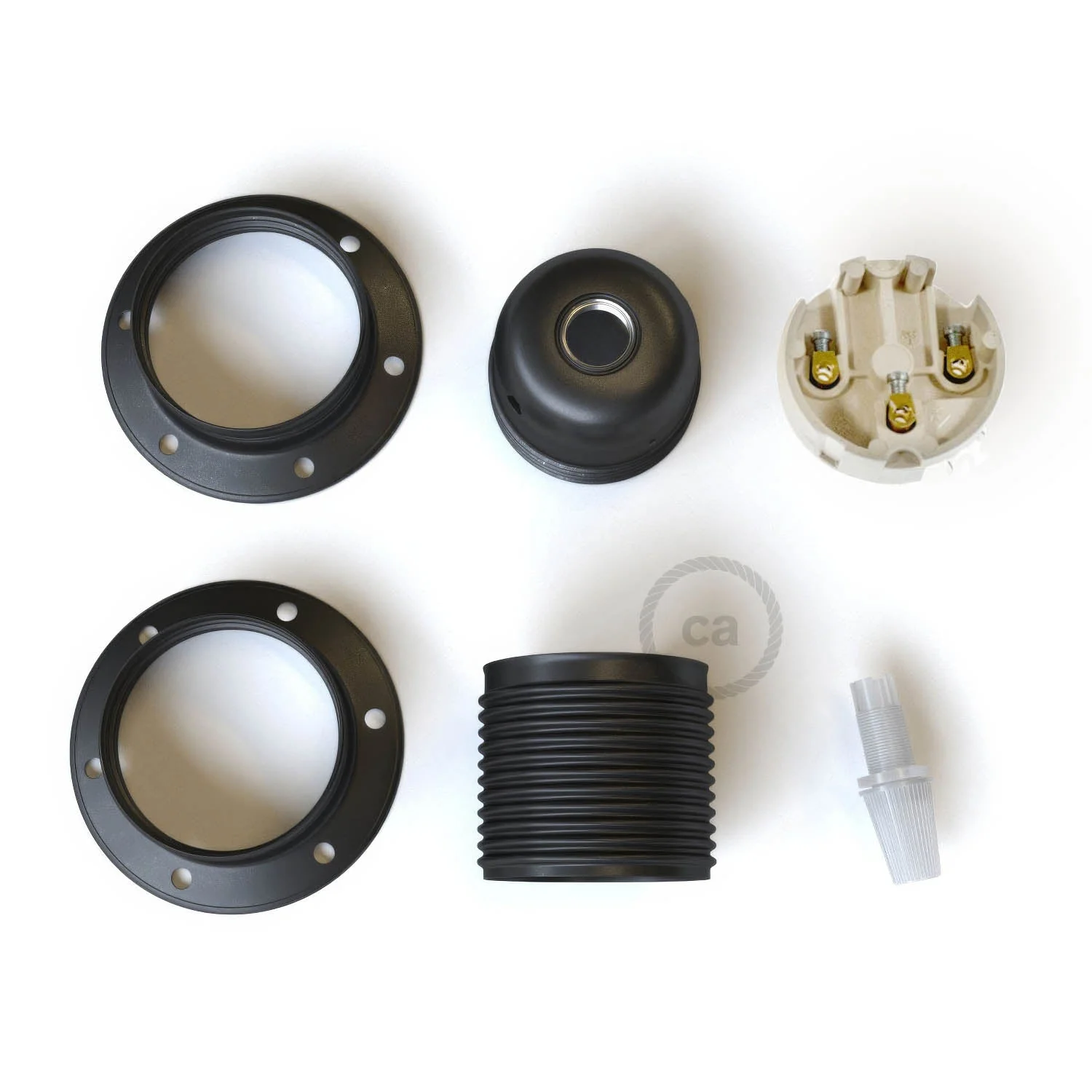

E27 metal lamp holder kit with double ring: Body: threaded Dimensions: Diameter: 40 mm Height: 55 mm Ring diameter: 60 mm Core: thermoset polyester T230 (Maximum operating temperature) Rated voltage: 250 Vac Rated current: 4 A Terminals: screw terminals for rigid or flexible cables from 0.5 to 2.5 mm2 Fixing: with M10x1 threaded hole
Technical specifications for cylindrical cable clamp: Cap size: diameter 13 mm – height 17 mm Cap material: metal Threaded tube size: diameter M10x1 – height 15 mm Threaded tube material: metal
Technical specifications for conical cable clamp:
Height: 43mm
Diameter: 14.8 mm
Material: thermoplastic
