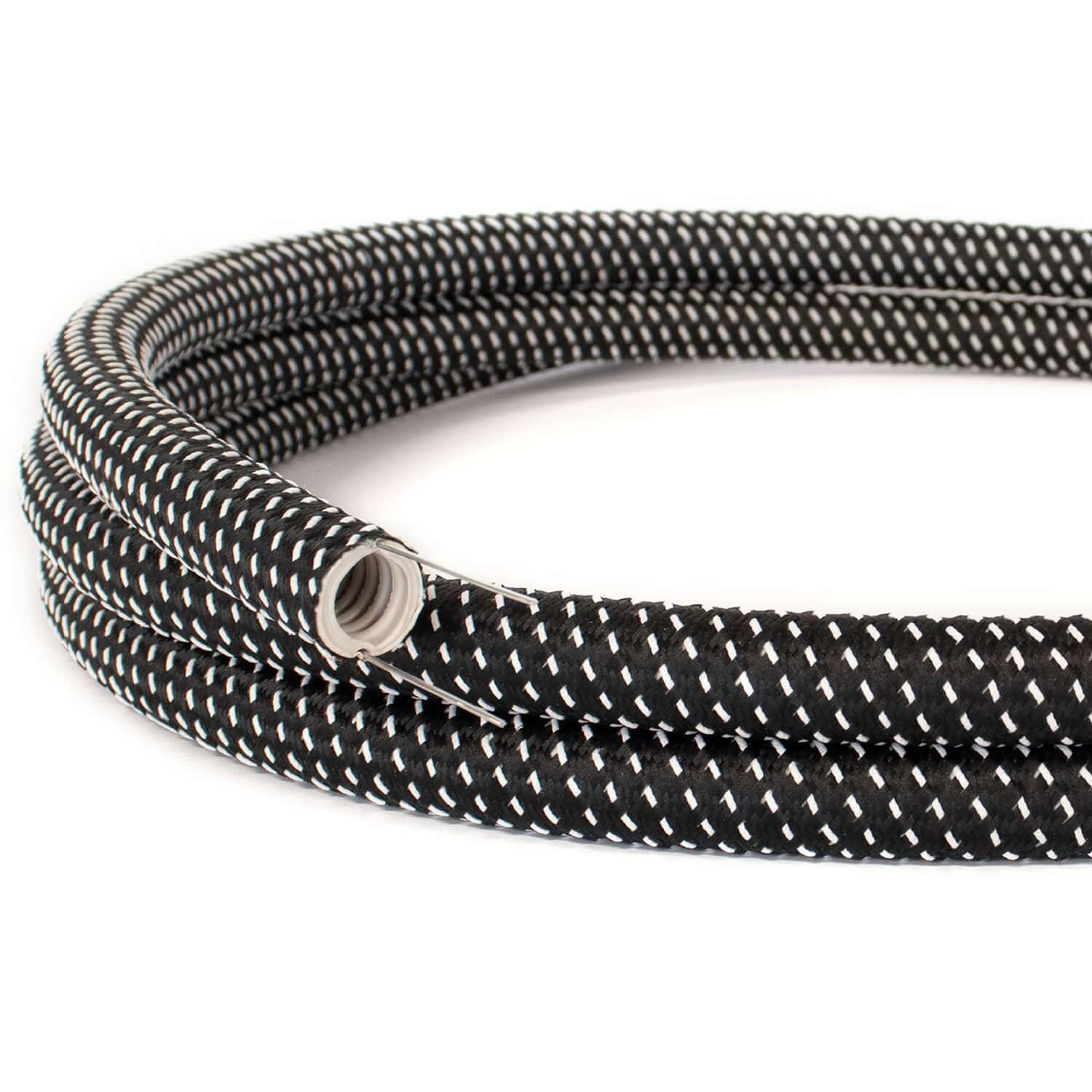

Creative-Tube, 20 mm diameter, RT41 3D Stars effect fabric covering, mouldable conduit
Creative-Tube is much more than just a fabric-covered conduit!
In fact, thanks to the metal filaments running through its entire length, Creative-Tube can take and maintain any shape. The only limit to the applications and uses of Creative-Tube will be your imagination!

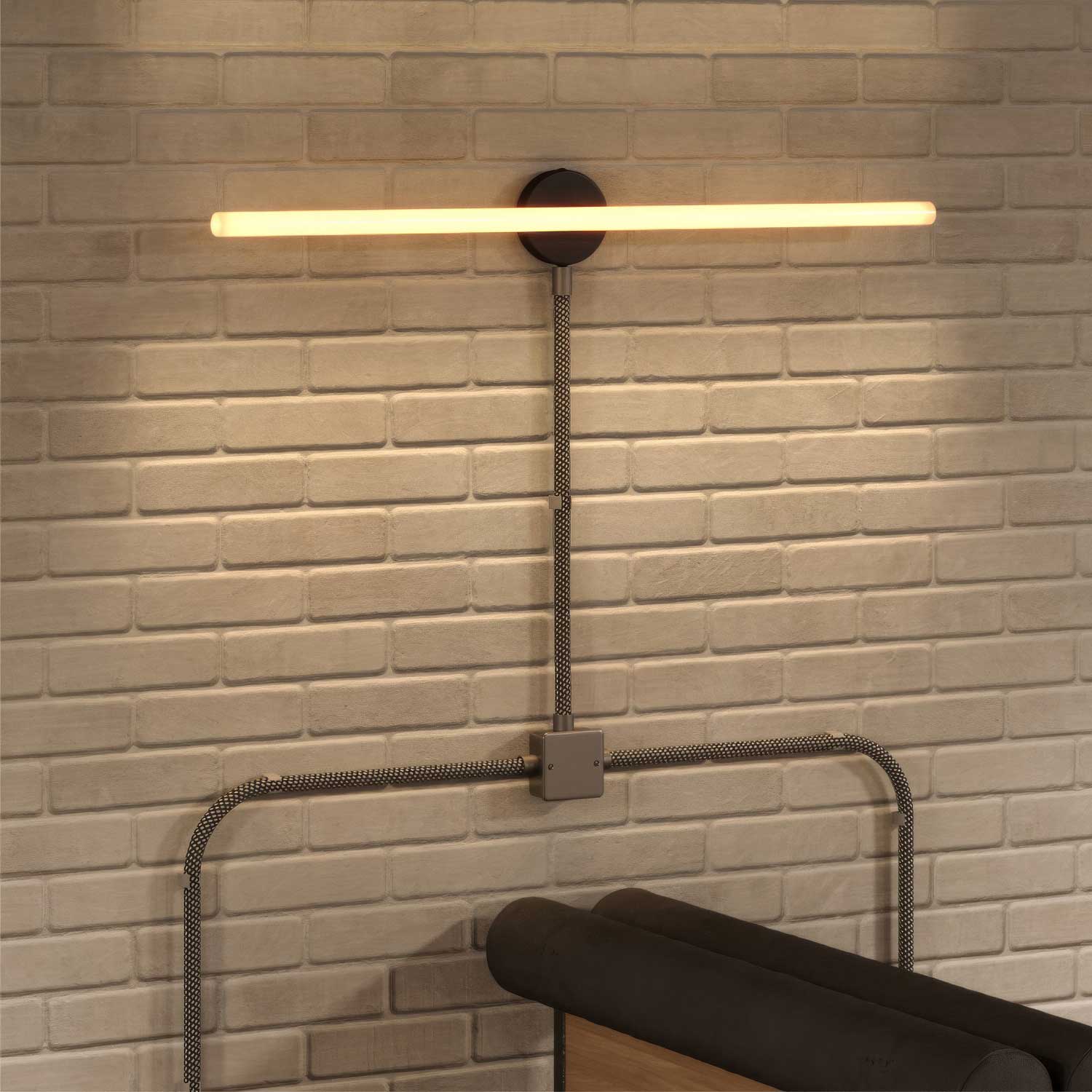

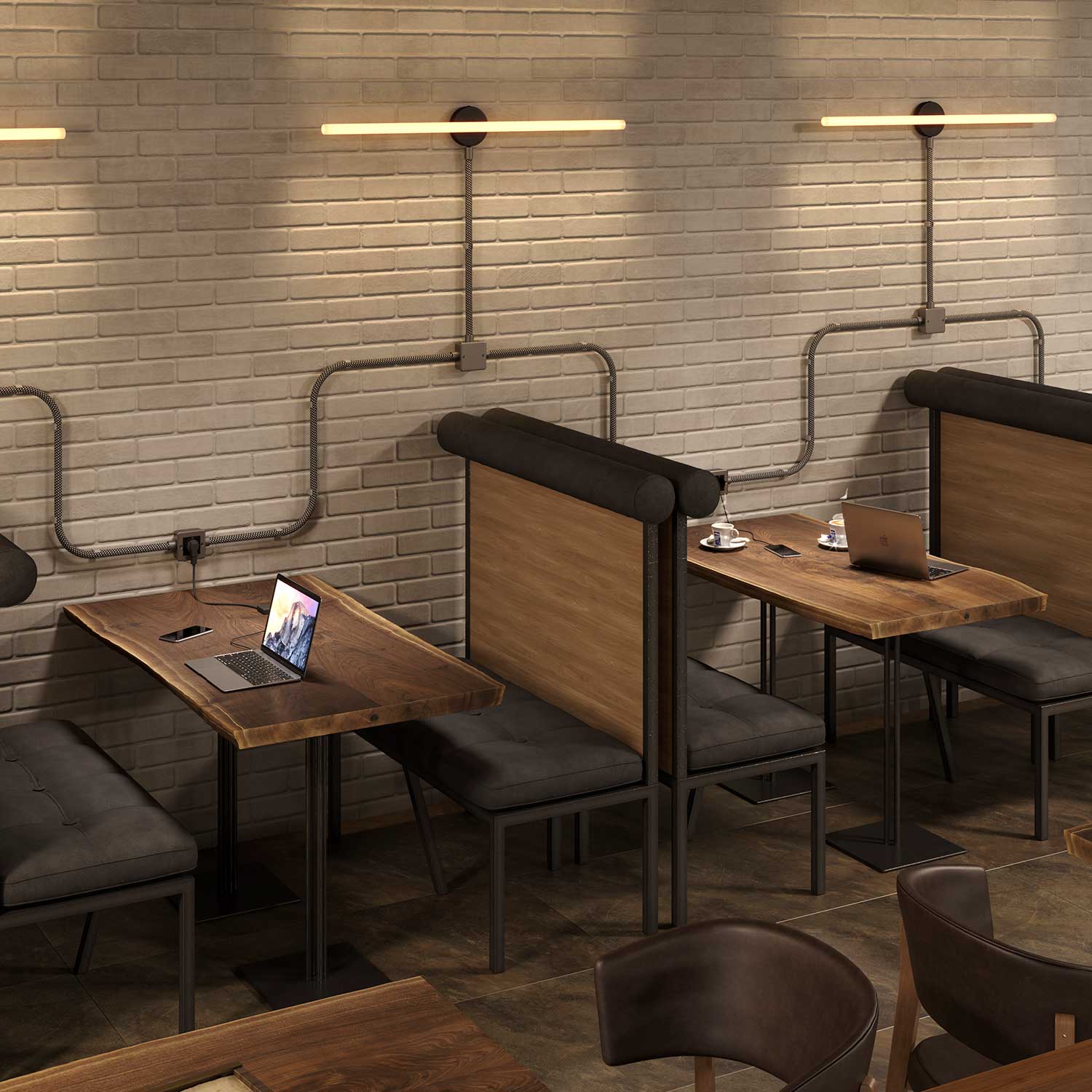

The 20 millimetre diameter Creative-Tube in 3D Star Effect fabric frees you from all those unsightly plastic conduits that run across your walls, and unleashes your creativity by allowing you to draw lines of colour and shape on your walls and ceilings, without the rigid forms of metal pipes.
Thanks also to the unique range of accessories developed by Creative-Cables, you can:
- connect the Creative-Tubes to standard junction boxes
- connect ceiling roses of wall or ceiling lamps directly
- create a complete electrical system with sockets and switches that’s perfect to show off, instead of hiding inside the walls!
You can use Creative-Tubes on the outside of walls, and their internal material complies with CEI-EN 61386-1 + EN 61386-22 Classification 3321.
Creative-Tube is sold by the metre; multiple orders will be delivered in a single length up to a maximum of 30 metres.
Can't find the Creative-Tube in the colour you want? Contact us: we can make it especially for you!
Technical specifications:
Classification: 3321 Crush resistance: >750N over 5 cm at 20°C Impact resistance: (-15°C) after conditioning with 2kg mass hammer Temperature range: -5°C to +60°C Flame resistance: self-extinguishing VO Dielectric strength: < 2000V at 50Hz Insulation resistance: >100 mega ohms Diameter: 20 millimetres Colour: RT41 3D Stars Effect

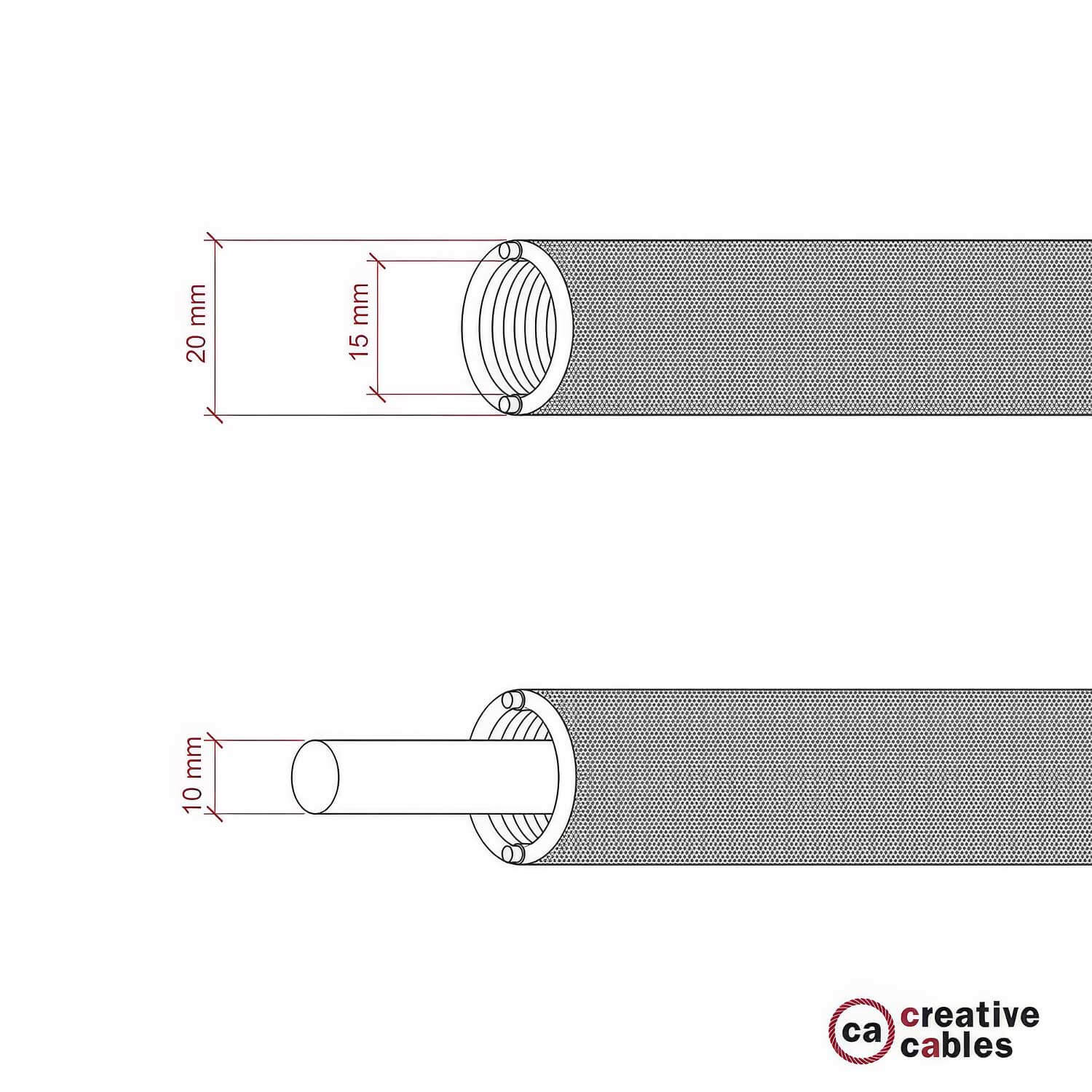

According to CEI 64-8 regulations, the maximum cross-section of cables inside the Creative-Tube can be 10 millimetres to ensure cables can be pulled through, for a tube up to 10 metres long. For up to 20 metres, the maximum thickness will be 9 millimetres.
Due to the very structure of the Creative-Tube, once positioned, it is necessary to cut the pieces of metal filament protruding from the edge of the tube before you can install the accessories or connect it to the junction box.
More Images
Creative-Tube, 20 mm diameter, RT41 3D Stars effect fabric covering, mouldable conduit
Creative-Tube is much more than just a fabric-covered conduit!
In fact, thanks to the metal filaments running through its entire length, Creative-Tube can take and maintain any shape. The only limit to the applications and uses of Creative-Tube will be your imagination!
The 20 millimetre diameter Creative-Tube in 3D Star Effect fabric frees you from all those unsightly plastic conduits that run across your walls, and unleashes your creativity by allowing you to draw lines of colour and shape on your walls and ceilings, without the rigid forms of metal pipes.
Thanks also to the unique range of accessories developed by Creative-Cables, you can:
- connect the Creative-Tubes to standard junction boxes
- connect ceiling roses of wall or ceiling lamps directly
- create a complete electrical system with sockets and switches that’s perfect to show off, instead of hiding inside the walls!
You can use Creative-Tubes on the outside of walls, and their internal material complies with CEI-EN 61386-1 + EN 61386-22 Classification 3321.
Creative-Tube is sold by the metre; multiple orders will be delivered in a single length up to a maximum of 30 metres.
Can't find the Creative-Tube in the colour you want? Contact us: we can make it especially for you!
Technical specifications:
Classification: 3321 Crush resistance: >750N over 5 cm at 20°C Impact resistance: (-15°C) after conditioning with 2kg mass hammer Temperature range: -5°C to +60°C Flame resistance: self-extinguishing VO Dielectric strength: < 2000V at 50Hz Insulation resistance: >100 mega ohms Diameter: 20 millimetres Colour: RT41 3D Stars Effect
According to CEI 64-8 regulations, the maximum cross-section of cables inside the Creative-Tube can be 10 millimetres to ensure cables can be pulled through, for a tube up to 10 metres long. For up to 20 metres, the maximum thickness will be 9 millimetres.
Due to the very structure of the Creative-Tube, once positioned, it is necessary to cut the pieces of metal filament protruding from the edge of the tube before you can install the accessories or connect it to the junction box.
