Creative-Tube, 20 mm diameter, fabric covering with Silk effect RM09 Red, flexible cable conduit
Creative-Tube, 20 mm diameter, fabric covering with Silk effect RM09 Red, flexible cable conduit
Creative-Tube is much more than just a fabric-covered conduit!
In fact, thanks to the metal filaments running through its entire length, Creative-Tube can take and maintain any shape. The only limit to the applications and uses of Creative-Tube will be your imagination!

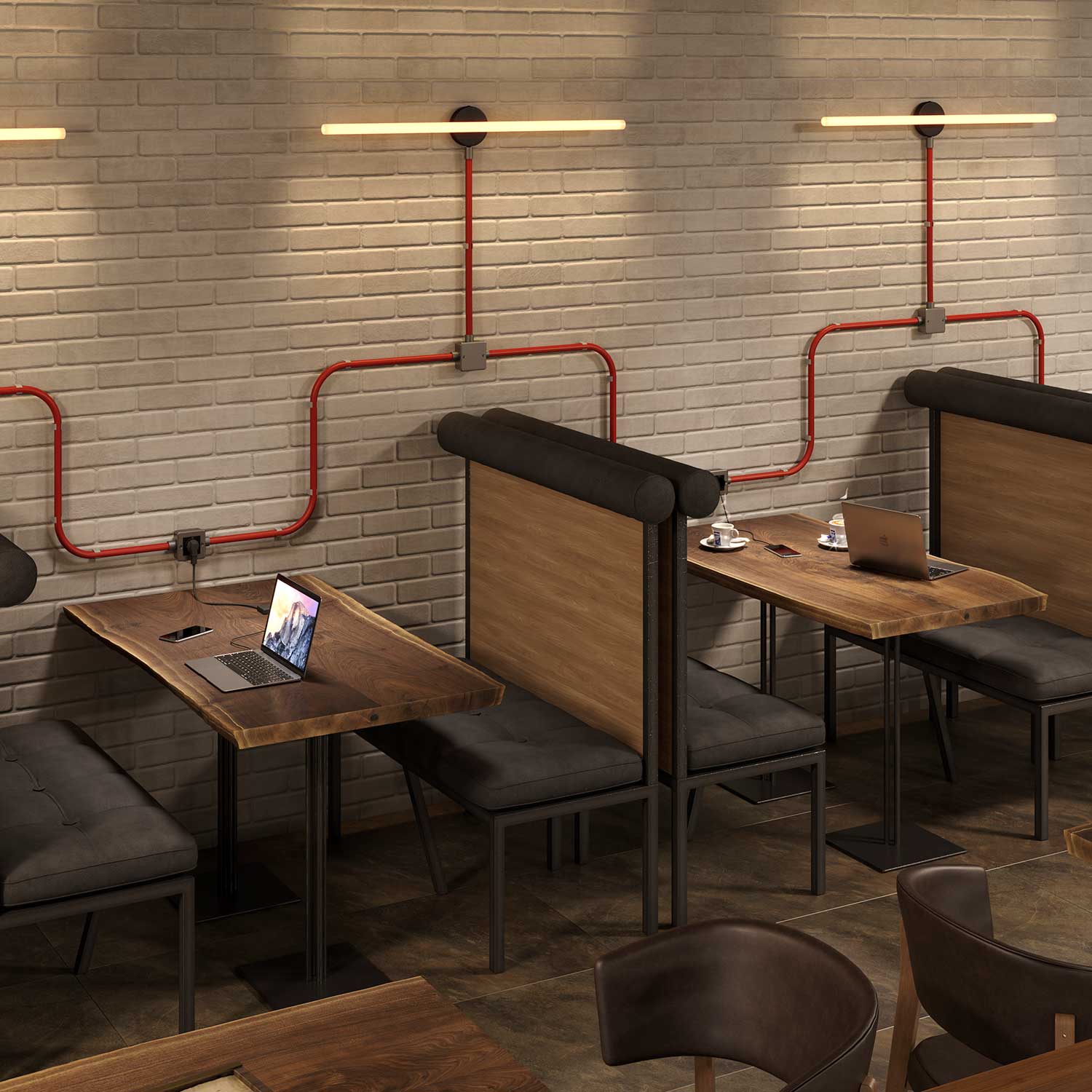

The 20-millimetre diameter Creative-Tube in Red Silk Effect fabric frees you from all those unsightly plastic electrical conduits that run across your walls, and unleashes your creativity by allowing you to draw a trail of colour and shape on your walls and ceilings as you wish, without the rigid forms of metal pipes.
Thanks also to the unique range of accessories developed by Creative-Cables, you can:
- connect the Creative-Tubes to standard junction boxes
- connect ceiling roses for wall or ceiling lamps directly
- create a complete electrical system with sockets and switches, perfect to show off instead of hiding in the walls!
You can use Creative-Tubes on the outside of walls, and their internal material complies with CEI-EN 61386-1 + EN 61386-22 Classification 3321.
Creative-Tube is sold by the metre; multiple orders will be delivered in a single length up to a maximum of 30 metres.
Can't find the Creative-Tube in the colour you want? Contact us: we can make it especially for you!
Technical specifications:
Classification: 3321
Crush resistance: >750N on 5 cm at 20°C
Impact resistance: (-15°C) after conditioning. 2kg hammer mass
Temperature range: -5°C to +60°C
Flame resistance: self-extinguishing VO
Dielectric strength: < 2000V at 50Hz
Insulation resistance: >100 mega ohms
Diameter: 20 millimetres
Colour: RM09 Silk Effect Red
According to CEI 64-8 regulations, the maximum cross-section of cables inside the Creative-Tube can be 10 millimetres to ensure cables can be pulled through, for a tube up to 10 metres long. For up to 20 metres, the maximum thickness will be 9 millimetres.
Due to the very structure of the Creative-Tube, once positioned, it is necessary to cut the pieces of metal filament protruding from the edge of the tube before you can install the accessories or connect it to the junction box.
