WAGO connection kit compatible with 2x cable for 8-hole ceiling rose

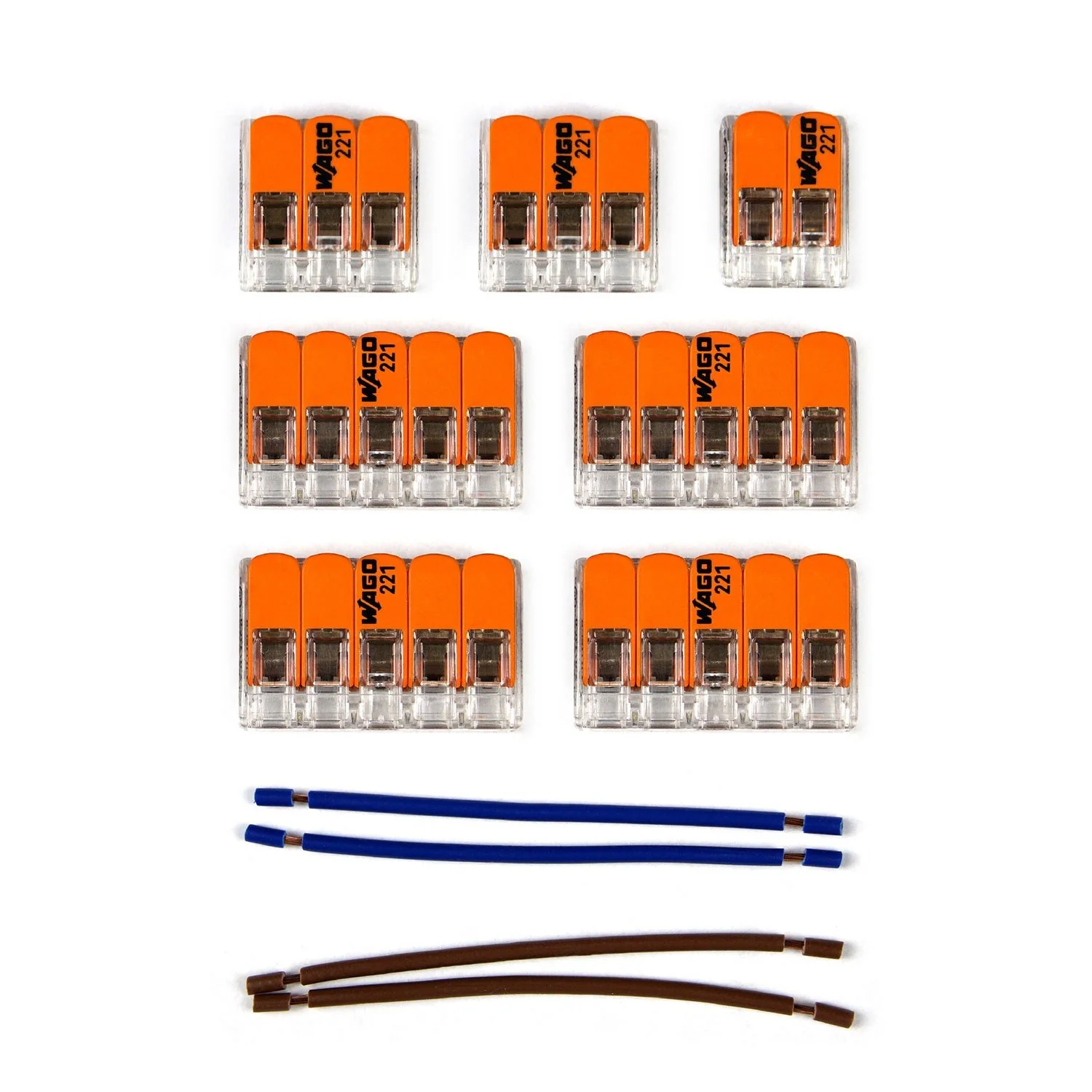

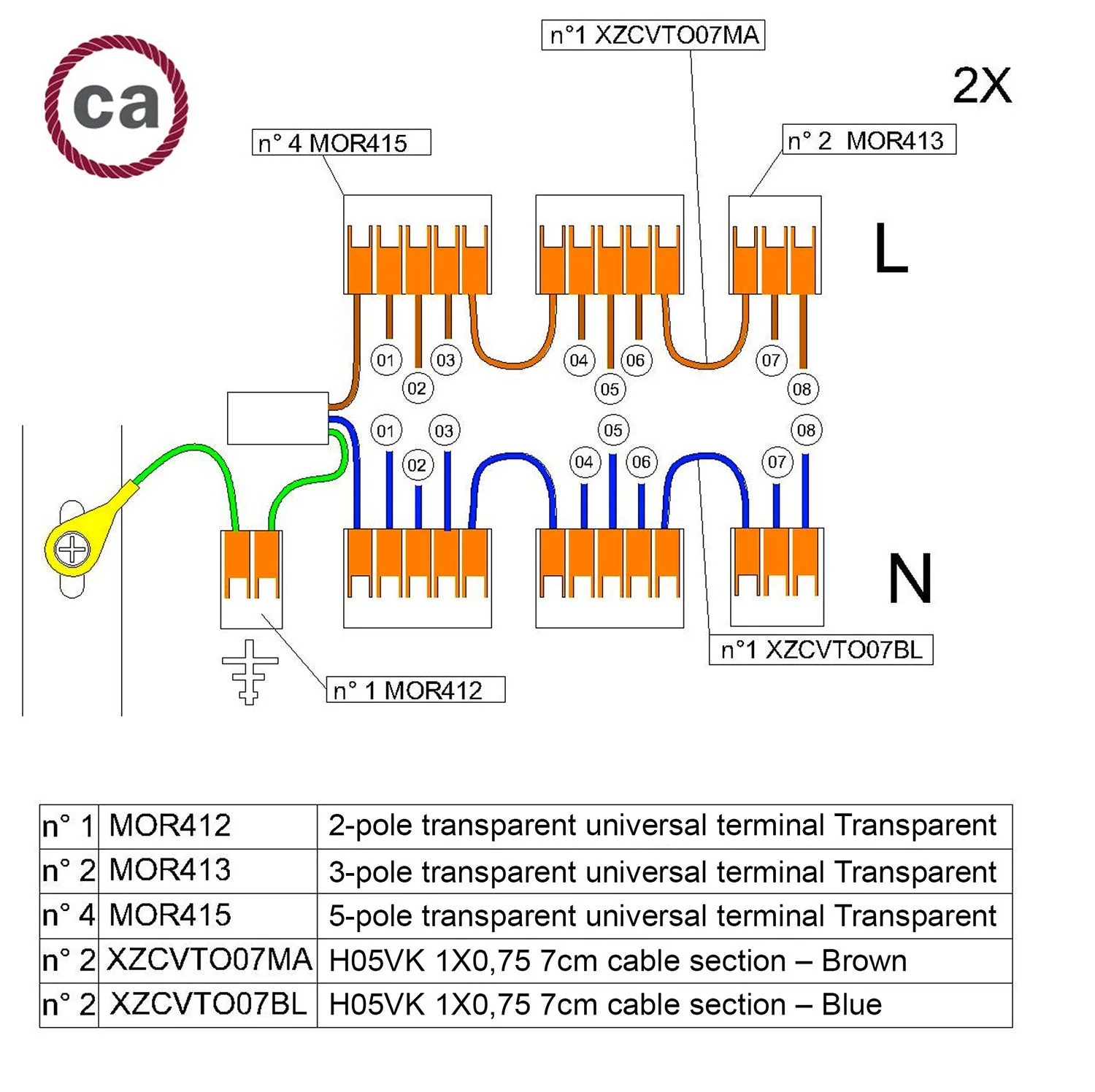

Accessory kit for ceiling rose wiring with 8 holes. The kit includes:
- 4 transparent universal 5-way terminal blocks
- 2 transparent universal 3-way terminal blocks
- 1 transparent universal 2-way terminal block
- 4 lengths of single-core cable useful as interconnection bridges
The transparent container allows you to clearly see whether the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electric cables with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for solid or flexible cables
4 connectors - Number of entries: 5
2 connectors - Number of entries: 3
1 connector - Number of entries: 2
Rated voltage: 450 V
Rated current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature according to EN 60998: 85° C
2 brown single-core cable sections: 7 cm
2 blue single-core cable sections: 7 cm
Original: $16.95
-65%$16.95
$5.93More Images
WAGO connection kit compatible with 2x cable for 8-hole ceiling rose
Accessory kit for ceiling rose wiring with 8 holes. The kit includes:
- 4 transparent universal 5-way terminal blocks
- 2 transparent universal 3-way terminal blocks
- 1 transparent universal 2-way terminal block
- 4 lengths of single-core cable useful as interconnection bridges
The transparent container allows you to clearly see whether the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electric cables with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for solid or flexible cables
4 connectors - Number of entries: 5
2 connectors - Number of entries: 3
1 connector - Number of entries: 2
Rated voltage: 450 V
Rated current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature according to EN 60998: 85° C
2 brown single-core cable sections: 7 cm
2 blue single-core cable sections: 7 cm
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Accessory kit for ceiling rose wiring with 8 holes. The kit includes:
- 4 transparent universal 5-way terminal blocks
- 2 transparent universal 3-way terminal blocks
- 1 transparent universal 2-way terminal block
- 4 lengths of single-core cable useful as interconnection bridges
The transparent container allows you to clearly see whether the wires are properly connected and stripped to the correct length.
Suitable for housing rigid or flexible electric cables with a cross-section between 0.2 and 4 mm².
Technical specifications:
Nominal section: 2 x 0.2 - 4 mm² for solid or flexible cables
4 connectors - Number of entries: 5
2 connectors - Number of entries: 3
1 connector - Number of entries: 2
Rated voltage: 450 V
Rated current: 24 A
Stripping length: 9mm (+1 mm)
Maximum ambient temperature according to EN 60998: 85° C
2 brown single-core cable sections: 7 cm
2 blue single-core cable sections: 7 cm
